OPEN UTILITY TRAILERS

5K Single Axle Open Utility Suncoast Trailer

  • Width:4' - 7'
  • Length Available:8’ - 12’ (2' Increments)
  • Sides Available:Flatbed, 12" - 48"
  • Maximum Weight Capacity (GVWR):5,000 lbs
Available Colors for Body:
  • Custom: Color/Wrap
Available Options
  • Torsion Axles
  • Side W/ Mesh -or- Solid Steel
  • Electric Brakes
  • Tailgate Ramp, Spring Assist
  • Deck: 1/8” Steel Diamond Plate
  • Tailgate Ramp, Length 54”, 60”, 66”, 72”
  • Flatbed or Side Rails
  • Tailgate Ramp, Optional Removable
  • Side Rails with 1.25” Tubular
  • Equipment Options: Welded for Security
  • Side Rails Heights: 12”, 16”, 24”, 48”
  • Hitch Utility Box and OPE Equipment Holders

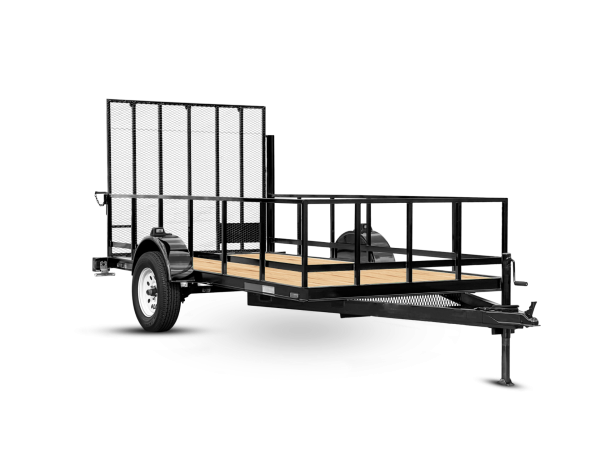

main product photo

CAPACITY

  • GVWR: (AXLE WEIGHT CAPACITY) 5,000 lbs.
  • Suspension Type:Spring Axle W/ Torsion Option

CONSTRUCTION

  • Chassis: 3" Channel Main Frame W/ 2" Angle Cross Member
  • Floor: (Plank) 2"x8" Pressure Treated. Optional: 1/8" Steel Diamond Plate
  • Sides: Flatbed -or- Tubular 1.25" Steel Rail W/ Heights of 12"- 48" W/ Optional Mesh -or- Solid Steel
  • Axle Type: 5K Spring, W/ Torsion Option, W/ E.Brake Option
  • TONGUE: 4" Channel
  • COUPLER: 2" Steel Coupler (2-5/16" Availabe on 5K-14K Series)
  • JACK: 2,000 lbs. -or- 7,000 lbs. Rated Screw Jack
  • TIRES: 225/75 R15
  • WHEELS: White -or- Black
  • Ramp: None, 54", 60", 66", 72"

See specific model for load ratings. For more information Contact Us

MODELS

  1. 4′x6′ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU4X6K5
    • Type:Open Utility
    • Width:4'
    • Length:6'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  2. 4’x8’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU4X8K5
    • Type:Open Utility
    • Width:4'
    • Length:8'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  3. 5’x8’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU5X8K5
    • Type:Open Utility
    • Width:5'
    • Length:8'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  4. 5’x10’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU5X10K5
    • Type:Open Utility
    • Width:5'
    • Length:10'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  5. 6’x10’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU6X10K5
    • Type:Open Utility
    • Width:6'
    • Length:10'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  6. 6’x12’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU6X12K5
    • Type:Open Utility
    • Width:6'
    • Length:12'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  7. 6’-4”X8’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU64X8K5
    • Type:Open Utility
    • Width:6’-4”
    • Length:8'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
      • Custom: Color/Wrap
    • Body Colors Available:
    Compare
    BUILD
  8. 6’-4”X10’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU64X10K5
    • Type:Open Utility
    • Width:6’-4”
    • Length:10'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  9. 6’-4”X12’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU64X12K5
    • Type:Open Utility
    • Width:6’-4”
    • Length:12'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  10. 7’x10’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU7X10K5
    • Type:Open Utility
    • Width:82" (7')
    • Length:10'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
  11. 7’x12’ 5K Single Axle Open Utility Suncoast Trailer
    • Sku#:SCU7X12K5
    • Type:Open Utility
    • Width:82" (7')
    • Length:12'
    • Sides Available:Flatbed, 12”, 16”, 24”, 48”
    • Axle Available:Spring Axle W/ Torsion Option
    • GVWR:5,000 lbs
    • Colors:
    • Body Colors Available:
    Compare
    BUILD
